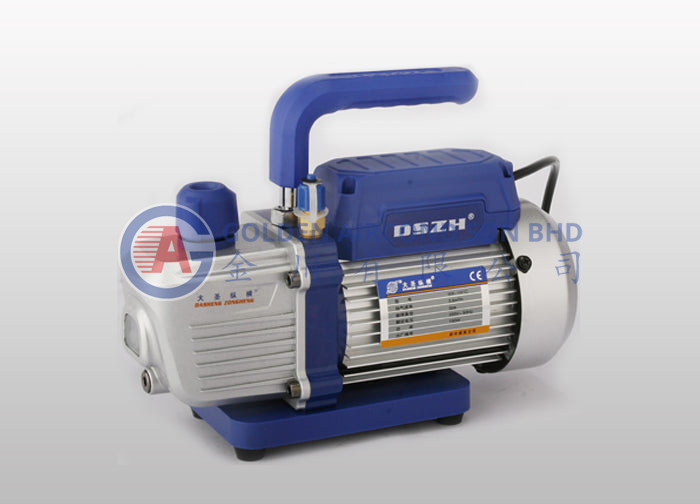

DSZH Vacuum Pump – Dual Stages

Product Code:

Style



  • Super durable.
  • High vacuum degree.



Item No.   WK-225 WK-235 WK-260 WK-280
Flow Rate 50 Hz 2.5 CFM 3.5 CFM 6.0 CFM 8.0 CFM
70 L/MIN 100 L/MIN 170 L/MIN 226 L/MIN
60 Hz 3.0 CFM 4.0 CFM 7.0 CFM 9.0 CFM
84 L/MIN 114 L/MIN  198 L/MIN 254 L/MIN
Utimate Vac. Partial Pressure 2 x 10^-1Pa 2 x 10^-1Pa 2 x 10^-1Pa 2 x 10^-1Pa
Total Pressure 15 Microns 15 Microns 15 Microns 15 Microns
Power 1/3 HP 1/3 HP 3/4 HP 1 HP
Inlet Port 1/4" Flare 1/4" Flare 1/4" & 3/8" Flare 1/4" & 3/8" Flare
Oil Capacity 200 ML 230 ML 400 ML 580 ML
Dimension 303 x 127 x 249 mm 331 x 127 x 249 mm 404 x 158 x 275 mm 427 x 158 x 275 mm
Weight 8.1 kgs 8.2 kgs 15.5 kgs 16.3 kgs
