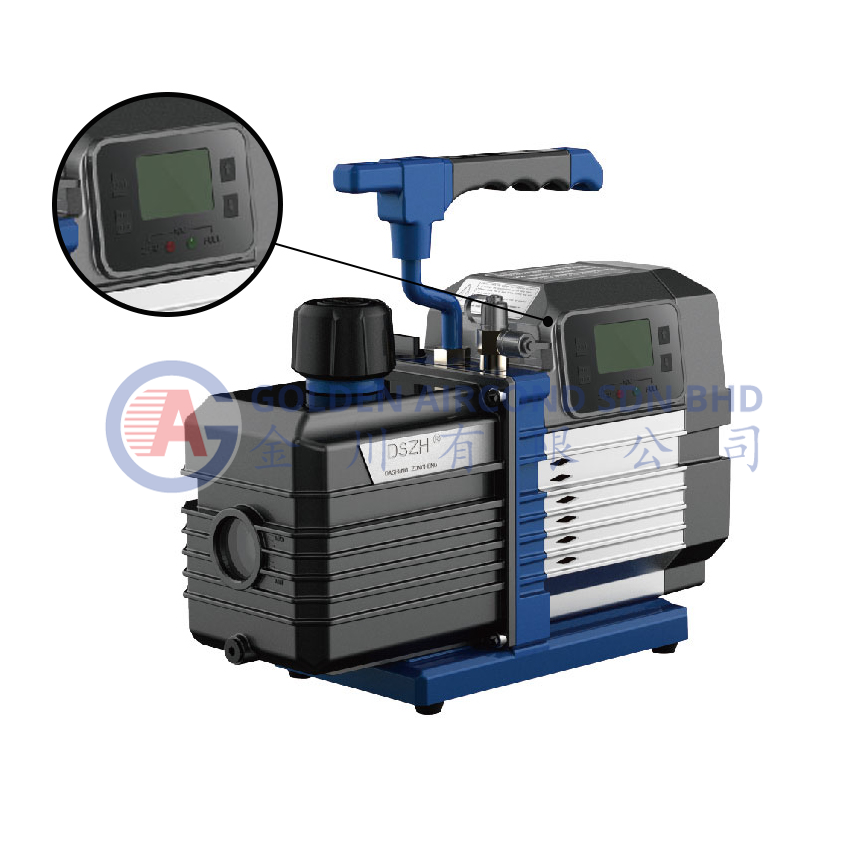

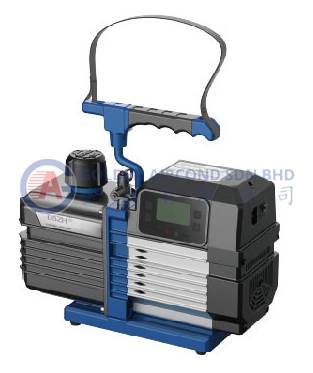

DSZH Intelligent Vacuum Pump – Digital Vacuum Meter

Product Code:

Style


  • Whole pressure range vacuum meter ATM~0.1 Pa
  • Backlight blinking when target pressure reached
  • Sparkless brushless motor use for R1234F, R290, R32 etc flammable refrigerants
  • Portable and appearance novel
  • Integrated cylinder, superior air impermeability
Item No. WK-8iBM WK-12iBM
Flow Rate 8.5 CFM 12.5 CFM
241 L/MIN 354 L/MIN
Pole No. Dual Stage Dual Stage
Utimate Vac. 2 x 10 - 1 Pa 2 x 10 - 1 Pa
15 microns 15 microns
Power 1HP  1HP
Inlet Port 1/4" & 3/8 flare 1/4" & 3/8" flare
Oil Capacity 550 ml 600 ml
Dimension 352 x 136 x 312 mm 352 x 136 x 312 mm
Weight 11.5 kgs 11.5 kgs
