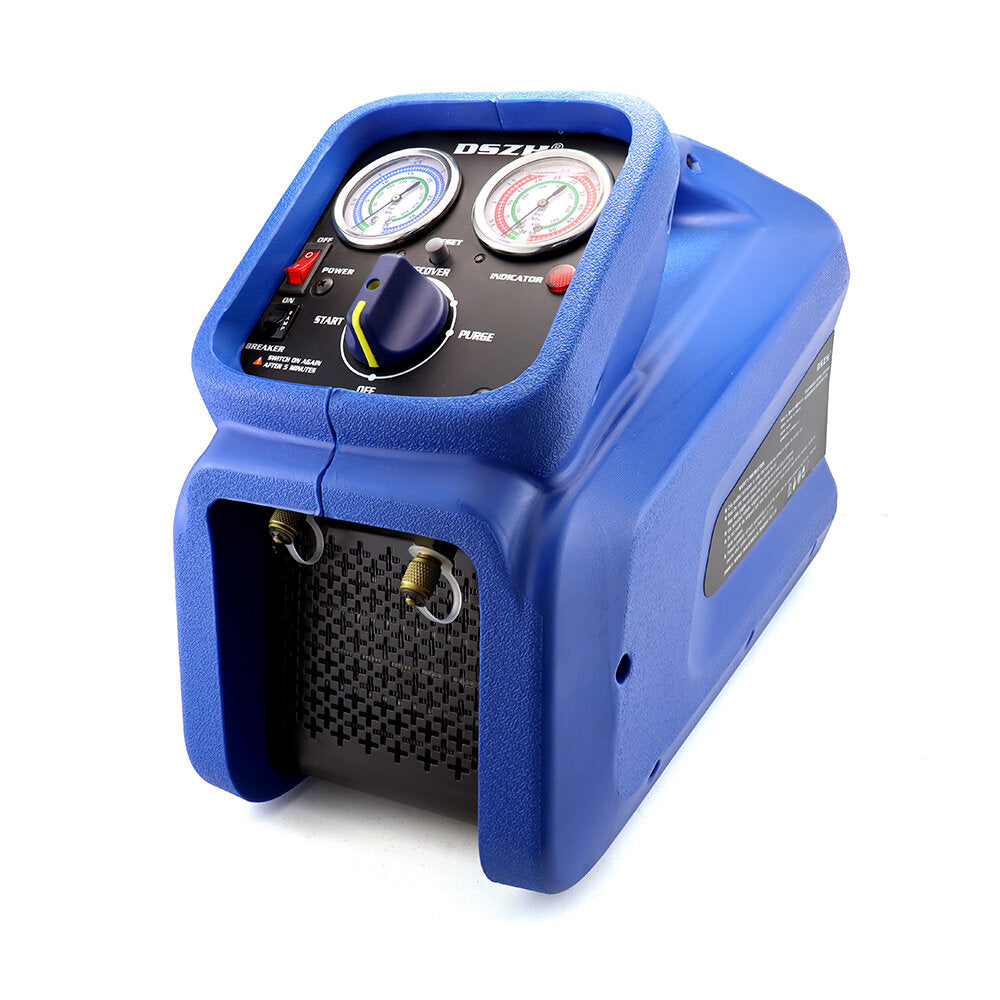

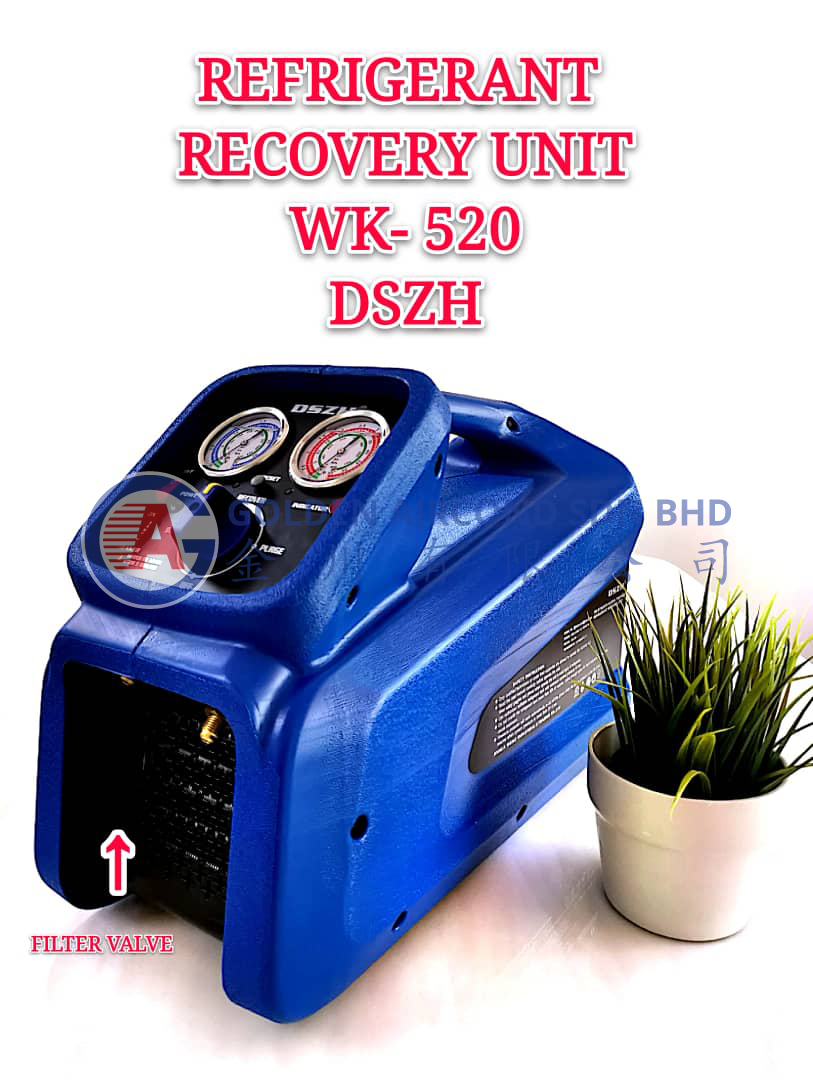

DSZH Refrigerant Recovery Unit – 520
Product Code:
Couldn't load pickup availability
| Model | DSZH 520 STANDARD | |||
| Refrigerant gas | Cat:R12 R134A R401C R406A R500 | |||
| Cat:R22 R401A R401B R402B R407C R407D R408A R409A R411A R411B R412A R502 R509 | ||||
| Cat.R402A R404A R407A R407B R410A R507 | ||||
| V0LTAGE | 220V/50HZ | |||
| MOTOR | 1HP AC | |||
| Maximal current | 6A | |||
| Compressor | oil-less，Air-cooled,2 Piston style | |||
| Recovery rate(kg/min) | category Ⅲ | category Ⅵ | category Ⅴ | |
| Vapor | 0.46kg/min | 0.50kg/min | 0.52kg/min | |
| Liquid | 3.14kg/min | 3.62kg/min | 3.7kg/min | |
| Push/Pull | 9.28kg/min | 11.04kg/min | 12.44kg/min | |
| High pressure switch | 38bar/550psi | |||
| Low pressure switch | Optional | |||
| Oil separator | Optional | |||
| 80% Liquid overcharge protector option | Optional | |||
| Operation temperature | 0℃-40℃ | |||
| Size | 485mmx220mmx365mm | |||
| Net Weight | 17Kg | |||
