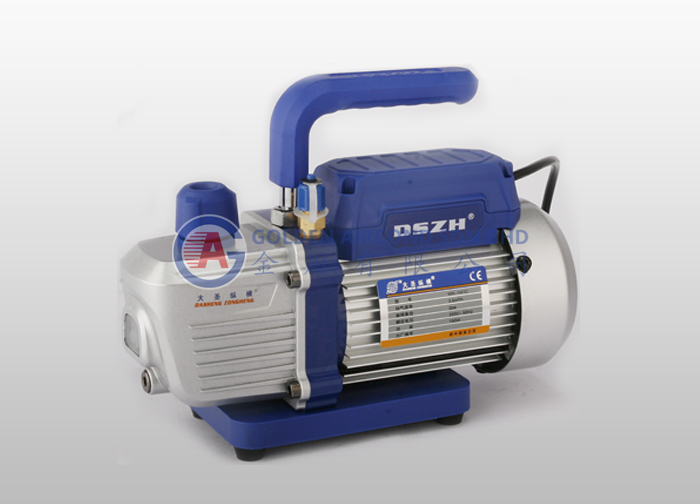

DSZH Vacuum Pump – Single Stage
Product Code:
Couldn't load pickup availability
| Item No. | WK-125 | WK-135 | WK-180 | |
| Flow Rate | 50 Hz | 2.5 CFM | 3.5 CFM | 8.0 CFM |
| 70 L/MIN | 100 L/MIN | 226 L/MIN | ||
| 60 Hz | 3.0 CFM | 4.0 CFM | 9.0 CFM | |
| 84 L/MIN | 114 L/MIN | 254 L/MIN | ||
| Utimate Vac. | Partial Pressure | 2 Pa | 2 Pa | 2 Pa |
| Total Pressure | 150 Microns | 150 Microns | 150 Microns | |
| Power | 1/4 HP | 1/3 HP | 3/4 HP | |
| Inlet Port | 1/4" Flare | 1/4" Flare | 1/4" & 3/8" Flare | |
| Oil Capacity | 180 ML | 240 ML | 520 ML | |
| Dimension | 290 x 124 x 227 mm | 303 x 127 x 249 mm | 404 x 158 x 275 mm | |
| Weight | 5.4 kgs | 8 kgs | 14.7 kgs | |
